Proto 2 / phantom wiring help needed

[Cboss]

If any of the experts could Supply a description and or a schematic of the wiring of these guitars I would be most grateful! Triple coil in the back, single coil at the neck, if I remember correctly there is a three-way switch and a two-way switch in addition to a master volume and a master tone.. please correct me if I'm wrong, I'm getting the Bare Bones of a Prototype 2 and want to put it together correctly, this would help immensely

[Jimbilly]

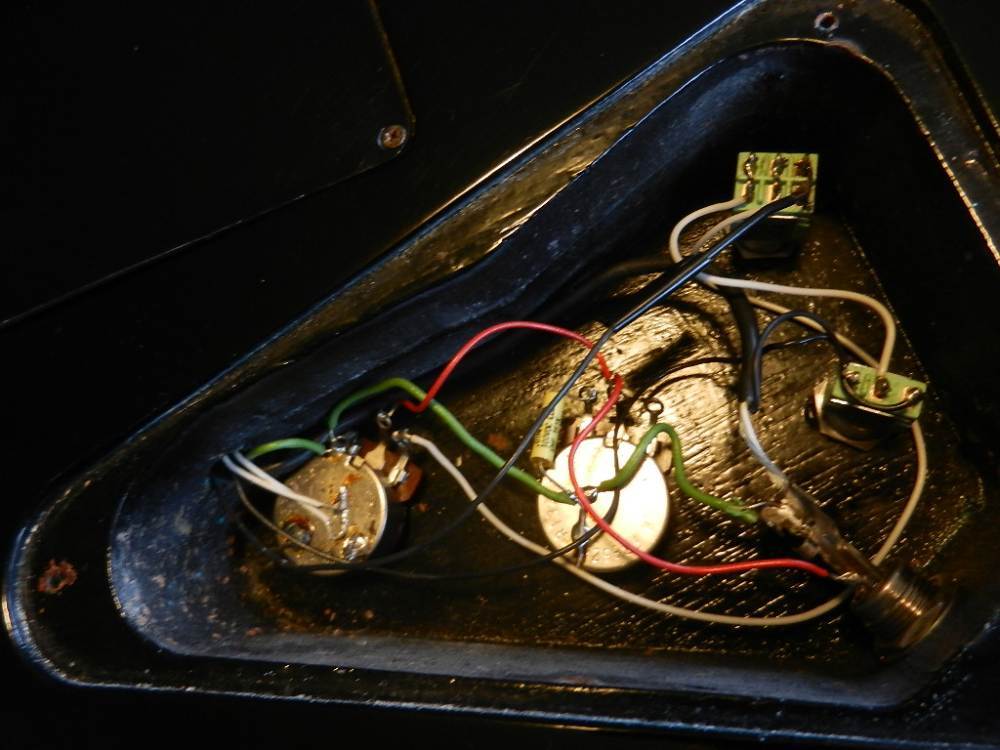

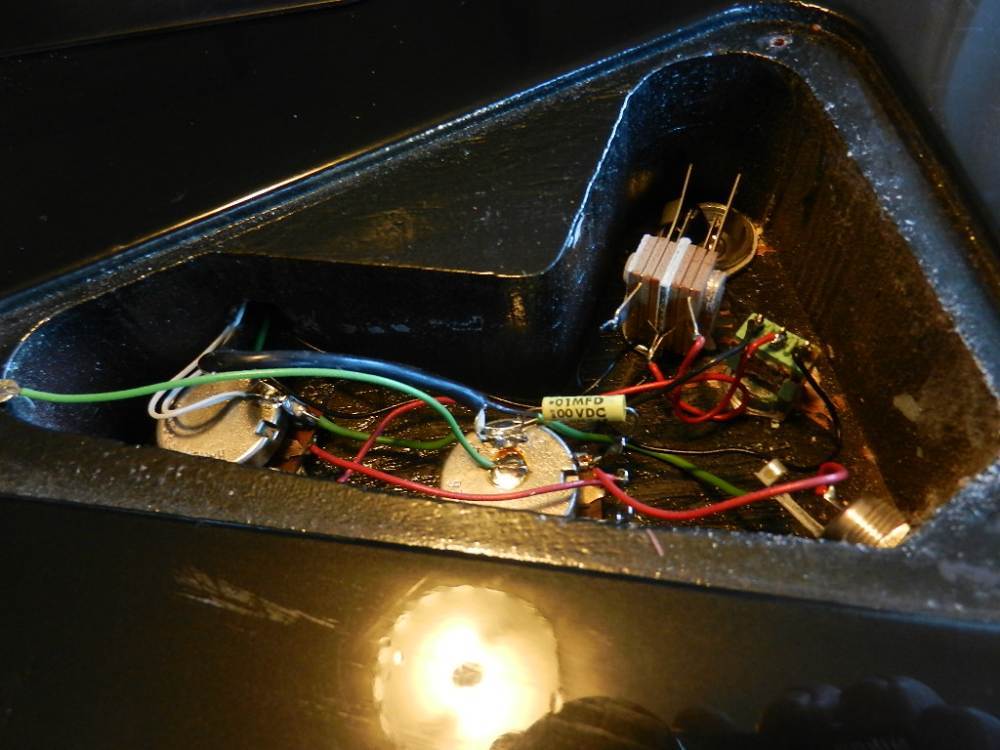

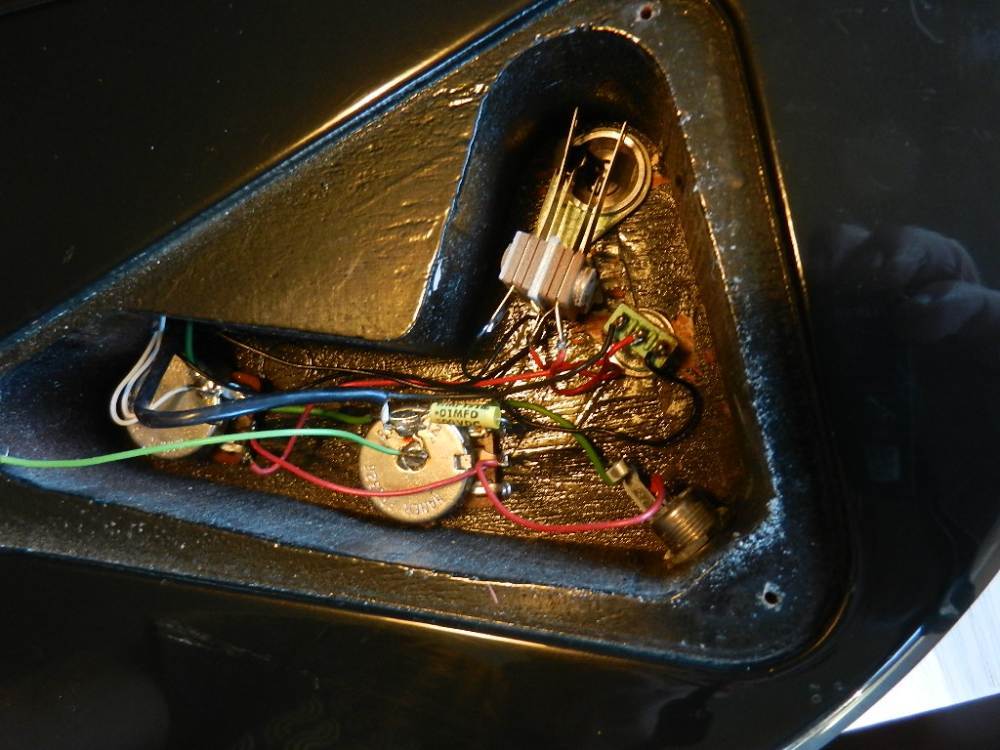

are these helpful? from my '84 proto 2. I can get other angles if you need them.

[Cboss]

That is super helpful, thank you so much! I think I'm going to use two three-way switches so I can get full switching rather than just the bucker or single coil in the triple

How do you like the guitar? The tone and pick up options?

[Jimbilly]

I like the guitar a lot, it has really grown on me, I bought it probably 20 years ago for very very cheap, I wasn't looking for one, but being active here and a fan of Hamer in general, I had to pick it up.  It seems somewhat similar in feel to my #1, which is a SSii, and the Kahler has grown on me, I think this is the only Kahler guitar I've ever owned.  I typically only use the neck or the hum, I think the pickups are wired the same as my SS1, which always takes me some time to understand, and I forget easily.

[Jimbilly]

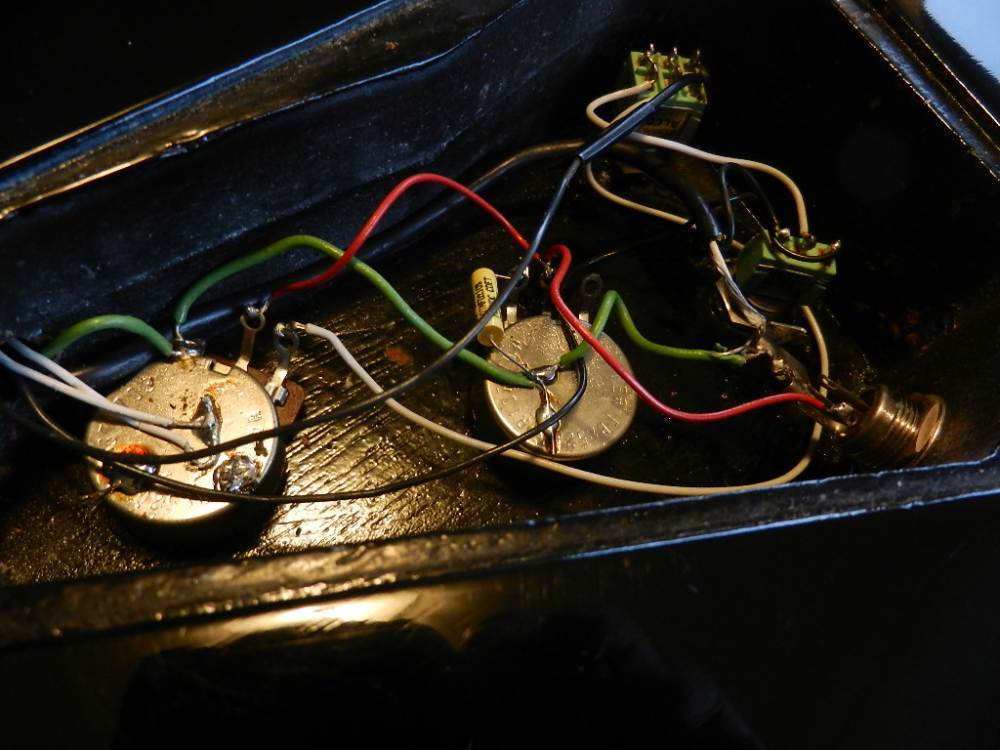

I don't know if this tells you anything or helps, but here's the '87 Steve Stevens Custom

[Cboss]

Thank you again so much, these are a big help! I can see in 87 they switched to that sealed switch instead of the typical one
