Cleaning a scratchy 5-way rotary switch on my Phantom Custom


JimHalinda

Question

Hi Guys,

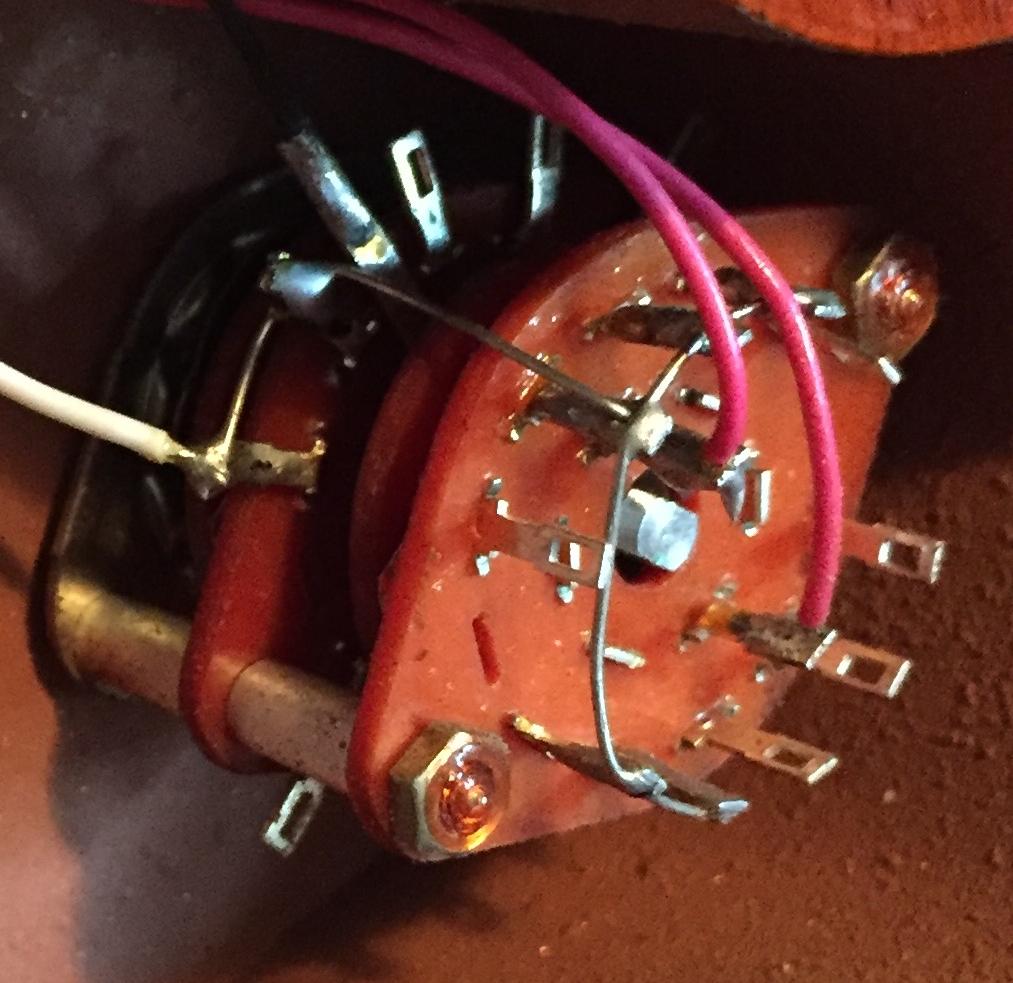

So I bought some contact cleaner for the scratchy 5-way rotary switch on my Phantom Custom.

Took off the access panel and... holy crap! Where do I spray on that thing? Do I have to remove it? I can't see anywhere to put the nozzle of the spray can.

Any advice appreciated.

Thanks,

JiPhantomRotary.thumb.JPG.7789acfe8a5fa86aa493a1a3a5400218.JPGm

Link to comment
Share on other sites

3 answers to this question

Recommended Posts

Open Frame Rotary Switch

Looking at this picture here it would be all the metal contacts that stick up between the two lower tan phenolic pieces.

Your switch is a little different so it would be all the metal contacts between the upper piece of phenolic and the middle piece of phenolic and all the metal contacts between the lower piece of phenolic and the middle piece of phenolic.

Link to comment
Share on other sites

On 10/13/2017 at 2:49 PM, HAMERMAN said:

Open Frame Rotary Switch

Looking at this picture here it would be all the metal contacts that stick up between the two lower tan phenolic pieces.

Your switch is a little different so it would be all the metal contacts between the upper piece of phenolic and the middle piece of phenolic and all the metal contacts between the lower piece of phenolic and the middle piece of phenolic.

This ^^^^^^

And use this:

https://www.markertek.com/product/g5s-6/caig-laboratories-pro-gold-cleaning-formula-5-ounce-spray
