Duotone input jack replacement

[ksmjc1969]

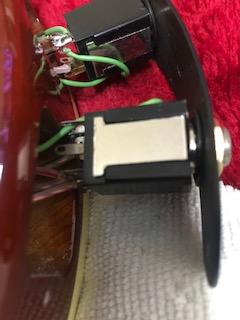

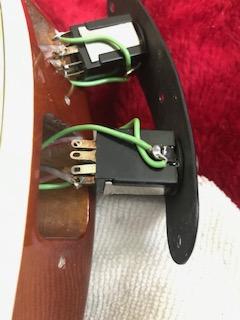

Hello guys I’m having troubles with the acoustic side input jack on my duotone ultimate . I’ve checked all solder joints and no problems there it’s very much looking like the jack itself is lose inside . I’m not sure on the make EMG ? I do see a EMG on the adjustment circuit board .  Anyone know where to get a replacement part ? It’s driving me crazy to keep cutting out .

thank you in advance

[tomteriffic]

This is the sore spot on a Duotone Custom/Ultimate.  You might contact Greg at BCR Music as he has dealt with this problem more than anyone, probably.  When I had the problem it turned out that something (jack housing?  solder joint?  mojo filter?  I dunno) was grounding out against the shielding paint in the control cavity.  The solution was to unscrew one end of the jack plate a turn or two.  Bang, it started working again and I never touched it after that.

By the way, EMG only made that tone control circuit board, nothing else in there.

[ksmjc1969]

Hey there yes it’s defiantly the sloppiest jack I’ve seen , you can move it slightly to the side to get it to fail . Thank you on the advice I’ll contact BCR .

[ksmjc1969]

No luck on even getting a reply from BCR anyone know any where else to get a replacement jack ?

Thank you in advance

[Studio Custom]

I always jsut remove them both and put in normal jacks, one for magnetics, the other for piezo.

[ksmjc1969]

On 6/3/2019 at 8:30 AM, Studio Custom said:

I always jsut remove them both and put in normal jacks, one for magnetics, the other for piezo.

Hey sorry I didn’t see your reply ! I’m not on here allot , any chance you have  a schematic on hand ? Thanks so much in advance! Much appreciated !!

[Studio Custom]

40 minutes ago, ksmjc1969 said:

Hey sorry I didn’t see your reply ! I’m not on here allot , any chance you have  a schematic on hand ? Thanks so much in advance! Much appreciated !!

I don't sorry.

[Hbom]

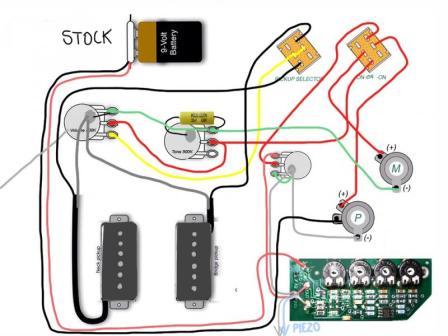

Does this help?

Found it here: https://www.hamerfanclub.com/forums/topic/39662-duotone-custom-wiring-assistance-requested/

[ksmjc1969]

Very cool thank you !
