Quick Connect to Switch Loaded pickguards?

[scottcald]

As the title says, anyone using some kind of easy connect/release connector in a Strat style body to easily switch out loaded pickguards?  I feel like there used to be something or I'd seen something for this, but of course can't find it now that I'm looking for it.

[Jeff R]

Plan to hardwire bridge ground line to output jack ground, to take that out of the quick connector equation.

[scottcald]

Thanks, Jeff.  Good consideration.

[HAMERMAN]

I have good luck using TE/AMP "AMPMODU" connectors:

SIDE 1:

Pins:                    5-104505-7
2 Pin Housing:    103653-1
3 Pin Housing:    103653-2

SIDE 2:

Pins:                    1-104480-6
2 Pin Housing:    104257-1
3 Pin Housing:    104257-2

All of these part number scan be looked up at Digi-Key.

These pins are good for 22-26AWG wire.

The only downside is you would need a crimp tool to do things right. A universal one like this should work.

https://www.amazon.com/IWISS-Terminals-Crimper-Various-sized-Contacts/dp/B08K498R84/ref=sr_1_38?dchild=1&keywords=pin+crimper&qid=1615994687&sr=8-38

[cynic]

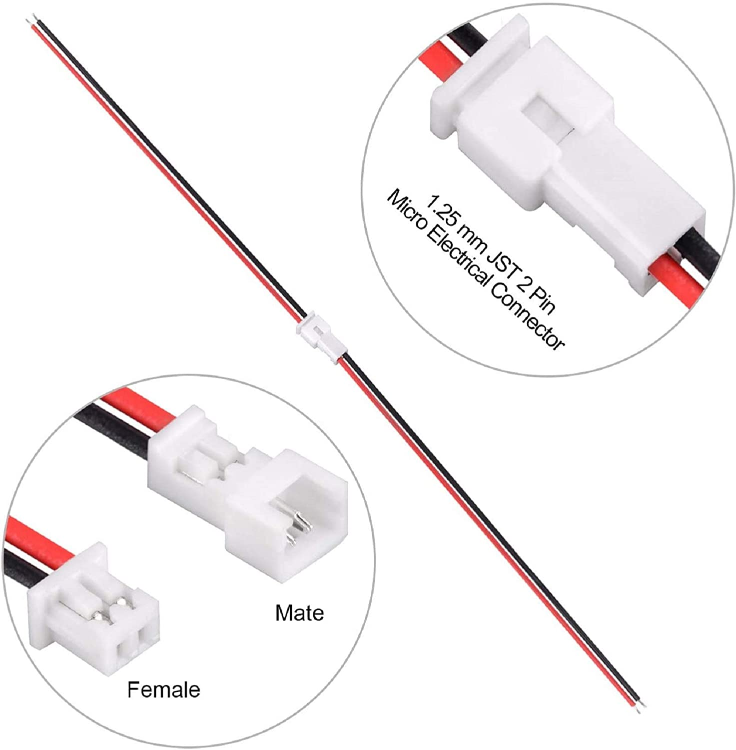

To execute the idea above without the need for buying a tool, you could buy these and just splice them in.

[scottcald]

2 hours ago, HAMERMAN said:

I have good luck using TE/AMP "AMPMODU" connectors:

SIDE 1:

Pins:                    5-104505-7
2 Pin Housing:    103653-1
3 Pin Housing:    103653-2

SIDE 2:

Pins:                    1-104480-6
2 Pin Housing:    104257-1
3 Pin Housing:    104257-2

All of these part number scan be looked up at Digi-Key.

These pins are good for 22-26AWG wire.

The only downside is you would need a crimp tool to do things right. A universal one like this should work.

https://www.amazon.com/IWISS-Terminals-Crimper-Various-sized-Contacts/dp/B08K498R84/ref=sr_1_38?dchild=1&keywords=pin+crimper&qid=1615994687&sr=8-38

Thanks, I may have a crimp tool from some old projects.  Can't remember if I gave it to a friend who needed it.

1 hour ago, cynic said:

To execute the idea above without the need for buying a tool, you could buy these and just splice them in.

Might go with this for the faster to implement option.

Great options, thanks, guys!
